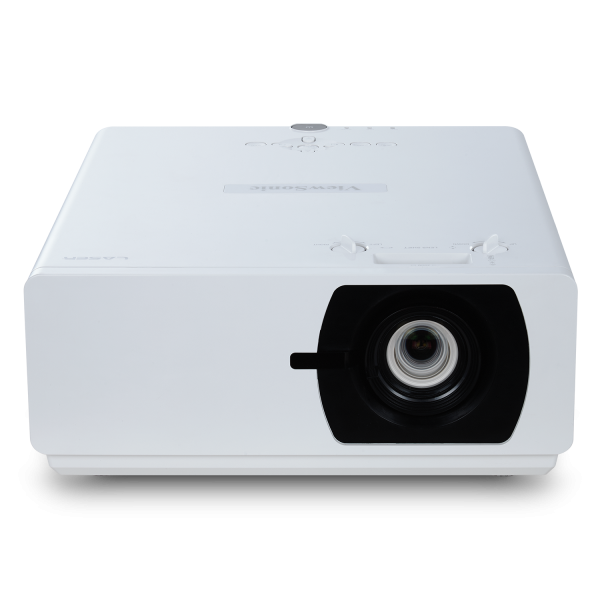

  • LS900WU Front LS900WU Front
  • LS900WU LS900WU
  • LS900WU LS900WU
  • LS900WU LS900WU
  • LS900WU LS900WU
  • LS900WU LS900WU
  • LS900WU Right LS900WU Right

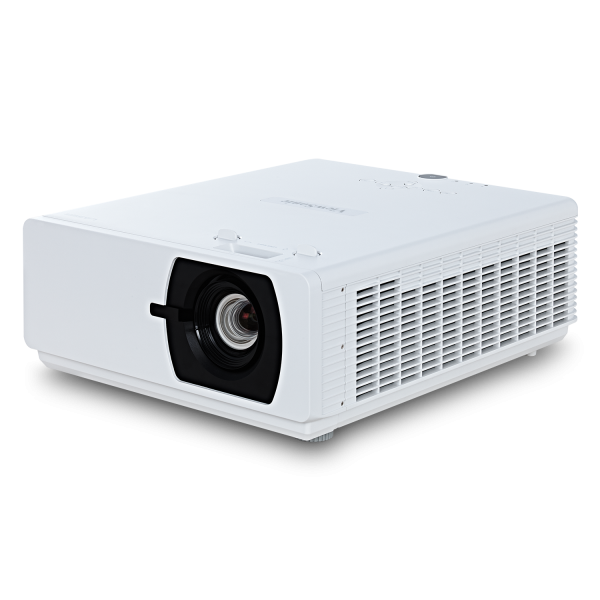

  • LS900WU Left LS900WU Left

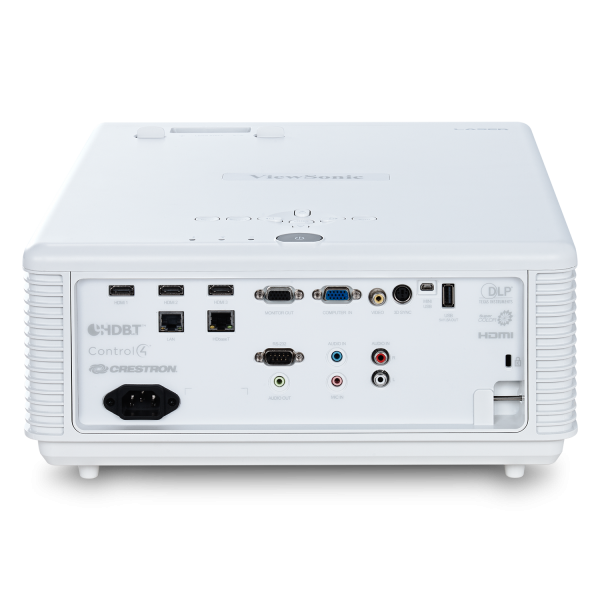

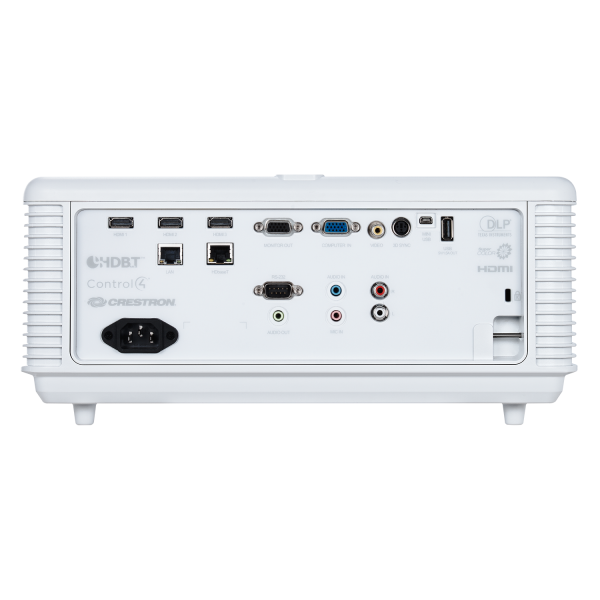

  • LS900WU Back LS900WU Back

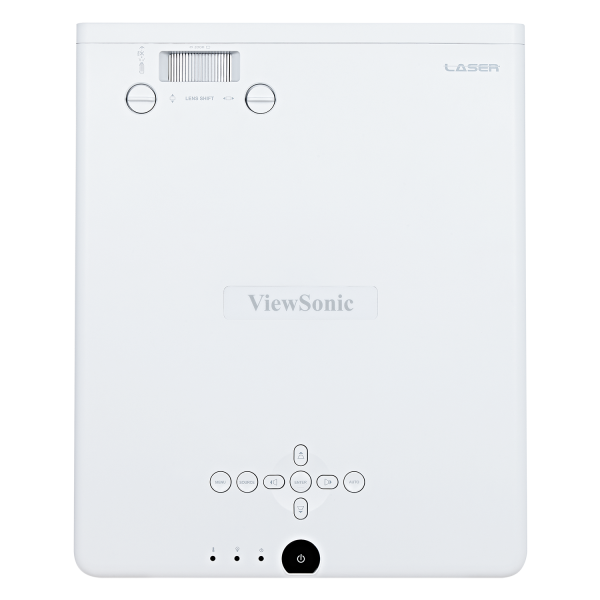

  • LS900WU Top LS900WU Top
  • LS900WU Connectors LS900WU Connectors

LS900WU - 6000 Lumens WUXGA Networkable Laser Projector with HV Keystone and Lens Shift

Bright and versatile for any professional installation, the ViewSonic® LS900WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 6,000 lumens of advanced high brightness, 100,000:1 contrast ratio, and up to 30,000 hours* of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms, houses of worship, and more. Thanks to SuperColor™ technology, content is brought to life with captivating color, crisp graphics, and stunning videos no matter the environment. This top-notch performer is also easy to deploy and manage with its wide 1.65x optical zoom adjustment, vertical/horizontal keystone, 4 corner adjustment, and a vertical/horizontal lens shift feature that provide extreme flexibility in even the most challenging installations. Thanks to the built-in HDBT receiver, the projector is capable of receiving uncompressed HD video and audio from over 200 feet away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility. The ViewSonic® LS900WU is the ideal WUXGA laser projector for professional installations, large venues, and business and education environments.


*Light source life may vary based on actual usage and other factors.

Find the right ViewSonic projector for your home theater, classroom, or enterprise solutions using our Projector Distance Calculator .

Availability: Out of stock

$3,952.99
Downloads
Comparison Sheet (PRG) | Datasheet | Media | Revit

Bright and versatile for any professional installation, the ViewSonic® LS900WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 6,000 lumens of advanced high brightness, 100,000:1 contrast ratio, and up to 30,000 hours* of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms, houses of worship, and more. Thanks to SuperColor™ technology, content is brought to life with captivating color, crisp graphics, and stunning videos no matter the environment. This top-notch performer is also easy to deploy and manage with its wide 1.65x optical zoom adjustment, vertical/horizontal keystone, 4 corner adjustment, and a vertical/horizontal lens shift feature that provide extreme flexibility in even the most challenging installations. Thanks to the built-in HDBT receiver, the projector is capable of receiving uncompressed HD video and audio from over 200 feet away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility. The ViewSonic® LS900WU is the ideal WUXGA laser projector for professional installations, large venues, and business and education environments.
*Light source life may vary based on actual usage and other factors.

6,000 Lumen Brightness

Bright Images in Large Spaces

Packed with 6,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large commercial spaces with high ambient light including auditoriums, convention centers, lecture halls, houses of worship and more.

Long-lasting Laser Phosphor Light Source

Designed with a sealed optical engine and laser phosphor light source lasting up to 30,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership

*Light source life may vary based on actual usage and other factors.

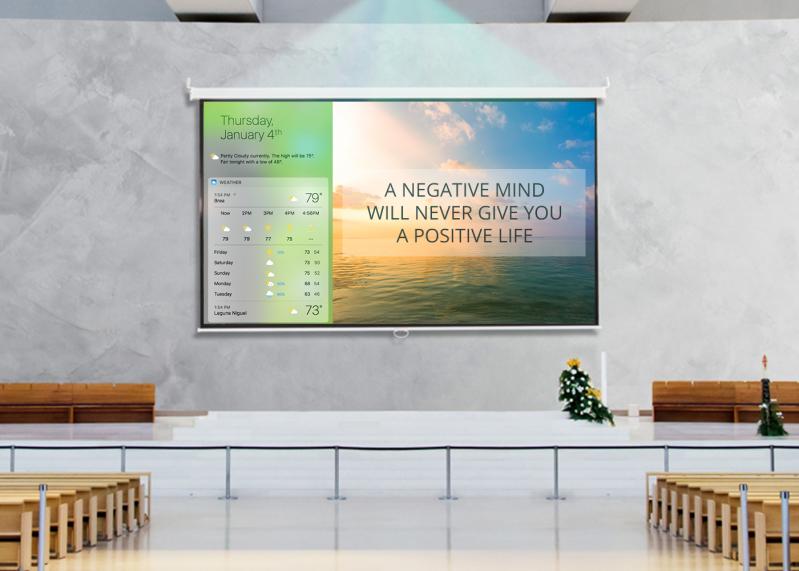

One-wire HDBT® Input

With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.

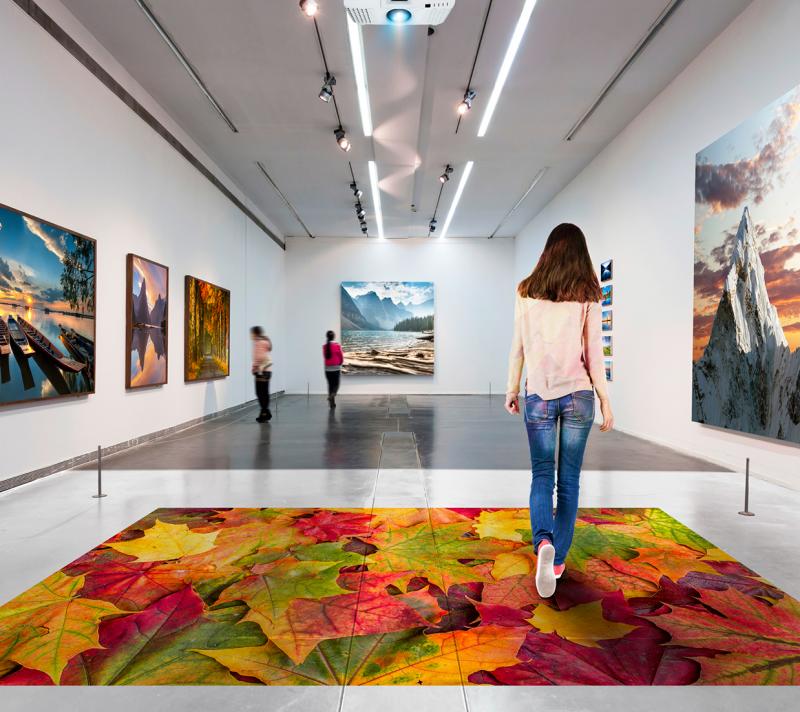

360-degree Orientation

A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.

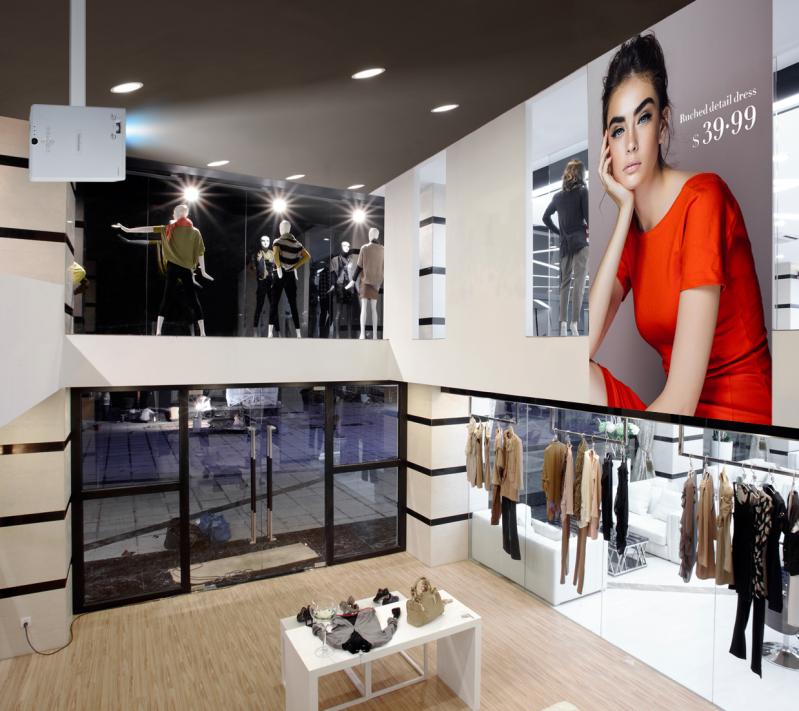

Portrait Mode Projection

This projector can be placed in a vertical position and project images in portrait orientation.

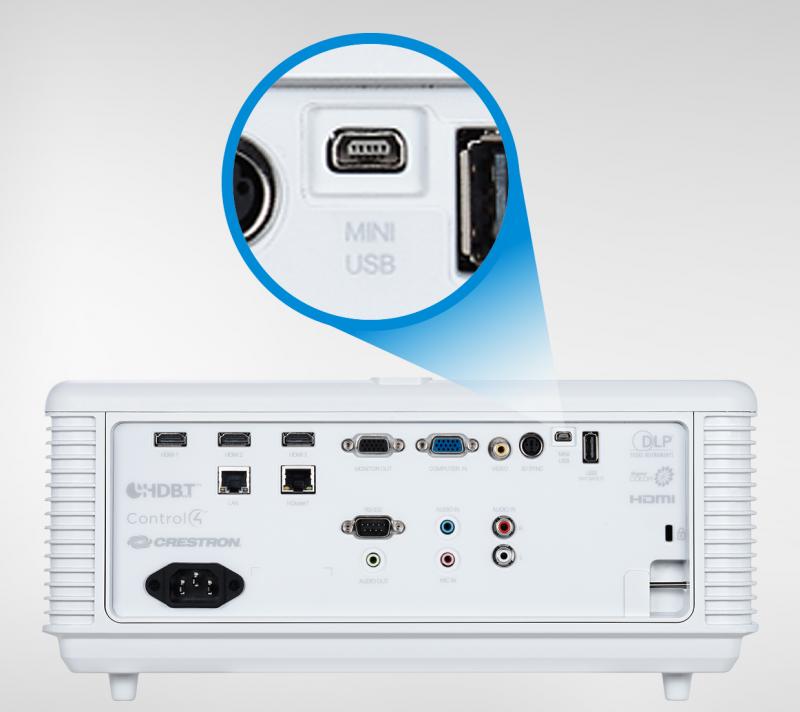

Software Updates via Mini USB

Software and firmware updates for this projector can be easily accessed online. Simply connect the projector to a computer via Mini USB, and run the software update program available below, in the Support & Downloads section of the product page.

5 year Warranty

Peace of Mind

ViewSonic offers one of the industry's best overall projector warranties with 5-year (or 20,000 hours) limited parts, labor, and light source. This includes first year free Express Exchange® service* for an added value worth up to $150**.

*One year Express Exchange® Service requires product registration. **Up to $150 added value over competitive models with 1-year warranty and based on extended warranties from manufacturers and not third party warranty providers.

Extreme Mounting Flexibility

A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.

Horizontal and Vertical Keystone Correction

Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time.

Horizontal and Vertical Lens Shift

A horizontal/vertical lens shift feature offers up and down, as well as left and right adjustments of the projection lens. This feature allows for flexible projector placement in challenging installations.

Network Monitoring & Control

IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.

Reduced Input Latency

This projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action.

Resolution

1920 x 1200

Throw Ratio

1.2 - 1.9

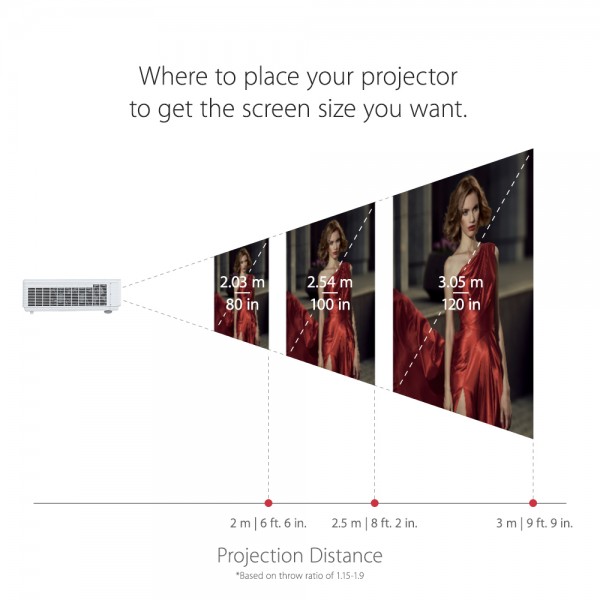

Throw Distance

4.0 - 24.4 ft / 1.24 - 7.43 m

Brightness (Lumens)

6,000 ANSI

Display

Type

DLP Laser

Resolution Type

WUXGA (1920x1200)

Resolution

1920 x 1200

Brightness (Lumens)

6,000 ANSI

Display Size (in.)

50 - 300 in. / 1.27 - 7.62 m

Throw Distance

4.0 - 24.4 ft / 1.24 - 7.43 m

Throw Ratio

1.2 - 1.9

Keystone

Vertical (+/- 25º) / Horizontal (+/- 30º)

Lens

1.65x optical zoom

Light Source (watt)

Laser bank x 4

Light Source Life, Normal (hours)

20000

Light Source Life, Dynamic Eco-Mode (hours)

30000

Color Depth

1.07B Color (R/G/B 10bit)

Dynamic Contrast Ratio

100,000:1

Aspect Ratio

16:10

Lens Shift

Horizontal (-2.5% +2.5%) / Vertical (-2.4% +9.2%)

Video Signal

Frequency Horizontal

15K~102KHz

Frequency Vertical

23~120Hz

Compatibility

PC Resolution (max)

1920 x 1200

PC Resolution (min)

640 x 480

Mac® Resolution (max)

1920 x 1200

Mac® Resolution (min)

640 x 480

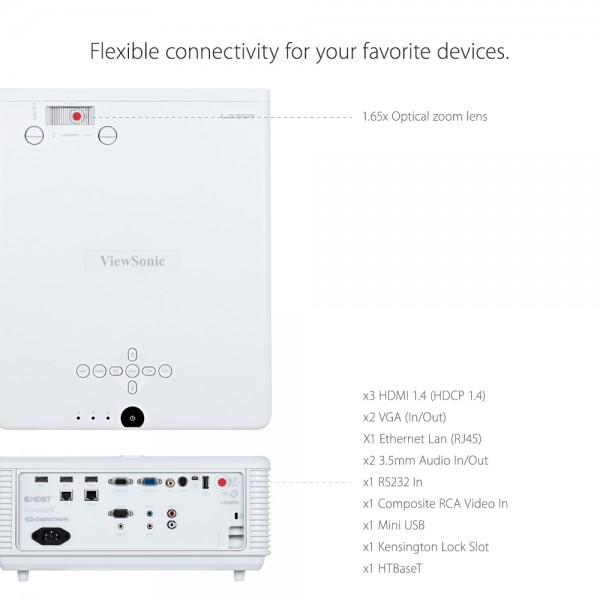

Connector

USB 2.0 Type A

1

Ethernet LAN (RJ45)

1

3.5mm Audio Out

1

3.5mm Audio In

1

Control (RS232)

1

HDMI In

3

VGA In

1

VGA Out

1

Composite RCA Video In

1

Mini USB

1

RCA Audio In (L/R)

1

RCA Audio Out

1

3D VESA

1

HDBT

1

Audio

Internal Speakers

5W (x2)

Power

Voltage

100-240V+/- 10%, 50/60Hz AC

Consumption (typical)

430W

Stand-by

<0.5W

Controls

Physical Controls

Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

On Screen Display

Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)

Operating Conditions

Temperature

32-104º F (0 - 40º C)

Humidity (non-condensing)

0-90%

Additional Hardware

Kensington Lock Slot

1

Weight (imperial)

Net (lbs)

24.2

Gross (lbs)

30.0

Weight (metric)

Net (kg)

11.0

Gross (kg)

13.6

Dimensions (imperial) (wxhxd)

Packaging (in.)

22.0 x 11.9 x 18.5

Physical (in.)

14.2 x 6.3 x 17.3

Dimensions (metric) (wxhxd)

Packaging (mm)

559.0 x 301.0 x 469.0

Physical (mm)

360.0 x 161.0 x 440.0

General

Regulations

FCC, UL/CUL, ROHS

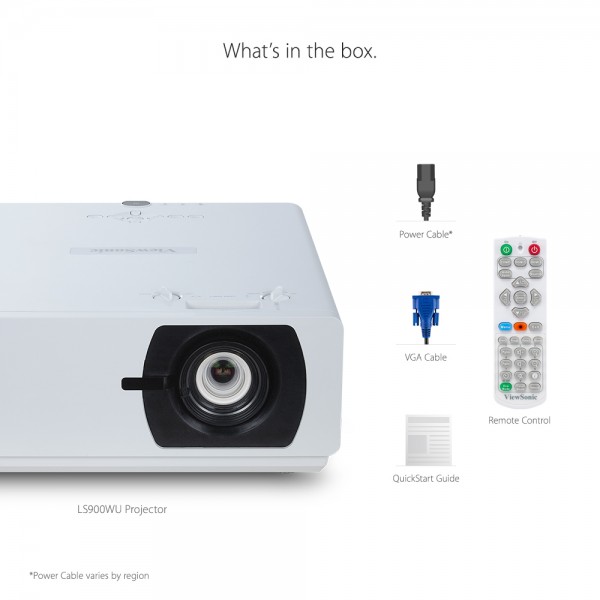

PACKAGE CONTENTS

LS900WU projector, power cable, VGA cable, remote control, Quick Start Guide

Warranty

Five-year limited warranty on parts and labor, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).

Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.

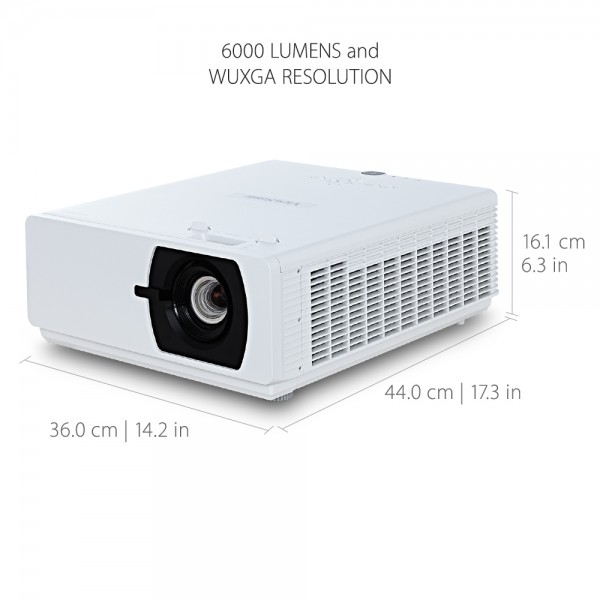

Dimensions

14.2 x 6.3 x 17.3 in / 360.0 x 161.0 x 440.0 mm

  1. Projection Lens
  2. IR Remote Sensor
  3. Elevation Feet
  4. Zoom
  5. Menu Controls
  6. Lens Shift
  7. VGA In
  8. HDMI (x3)
  9. LAN
  10. AC In
  11. HDBT
  12. RS232
  13. Audio Out
  14. Monitor Out
  15. Video
  16. 3D Sync
  17. USB 2.0 Type A
  18. USB Mini B
  19. Kensington Lock Slot
  20. Audio In (R/L)
  21. Audio In / Mic In
