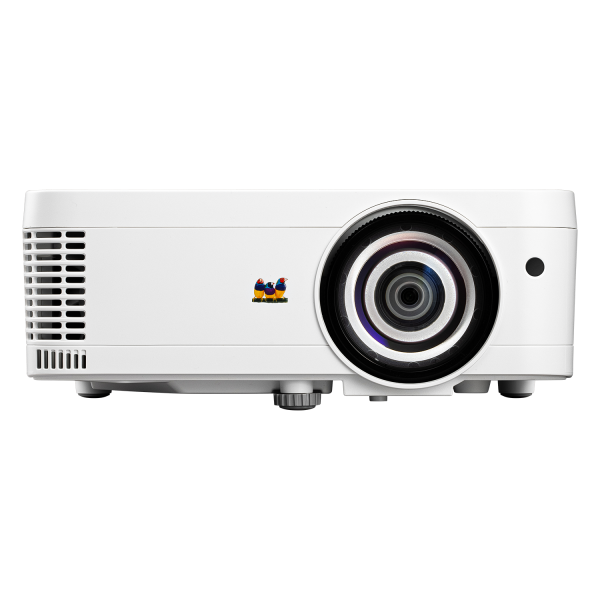

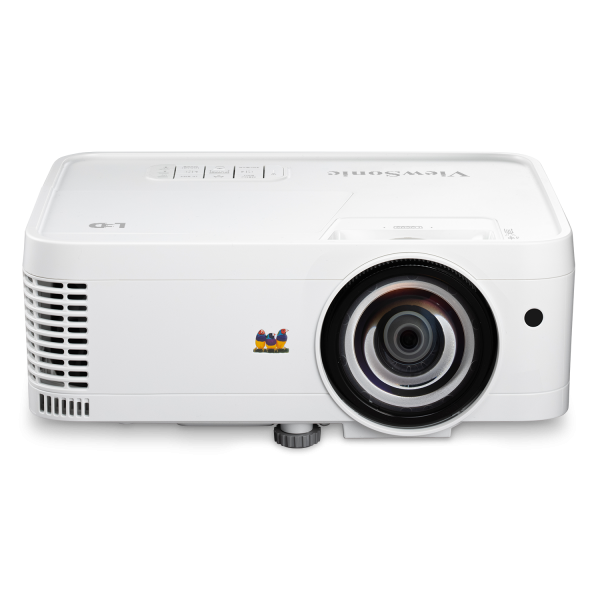

  • LS550WH Front LS550WH Front
  • LS550WH Front LS550WH Front

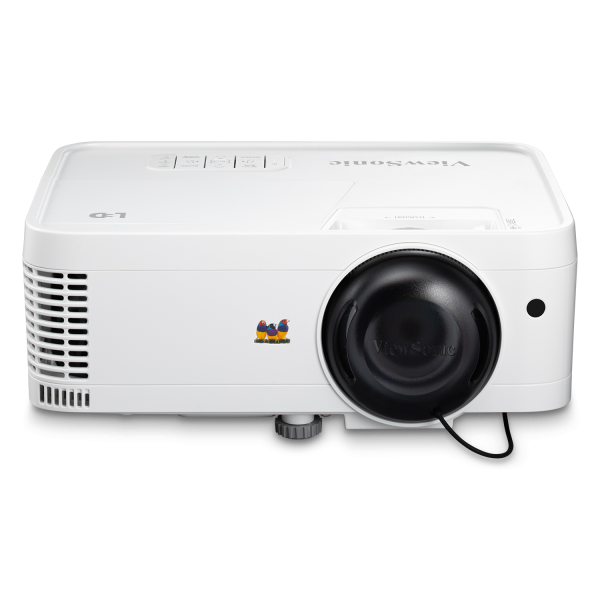

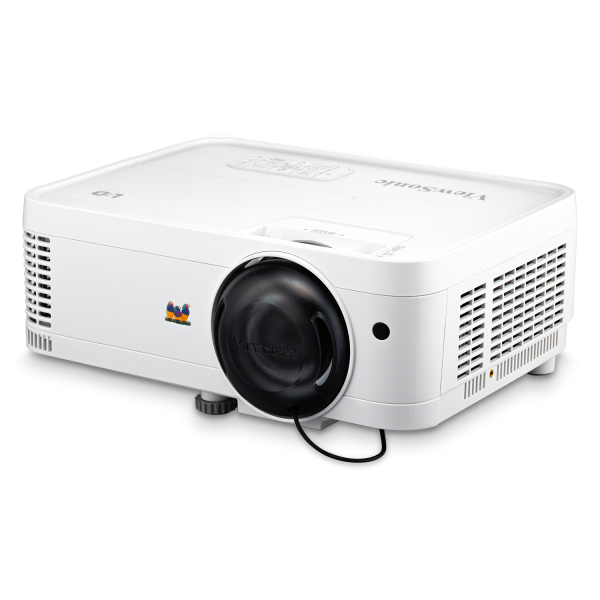

  • LS550WH Front Cover LS550WH Front Cover

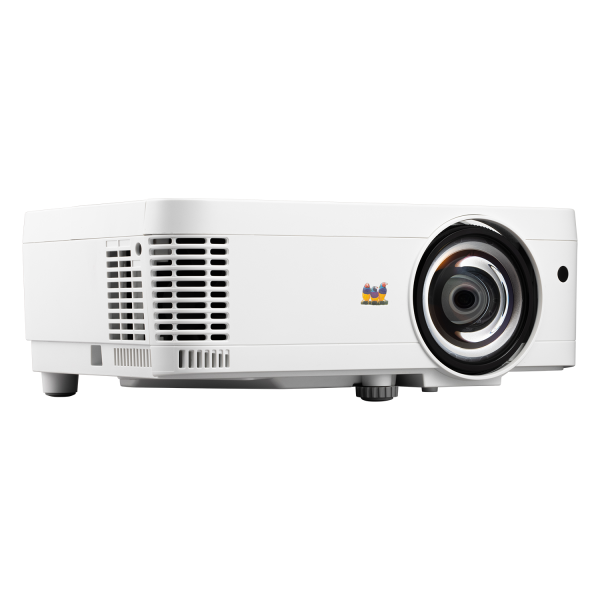

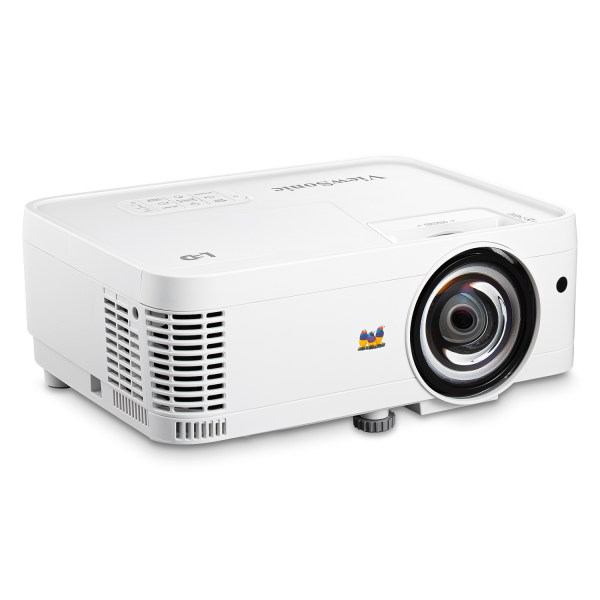

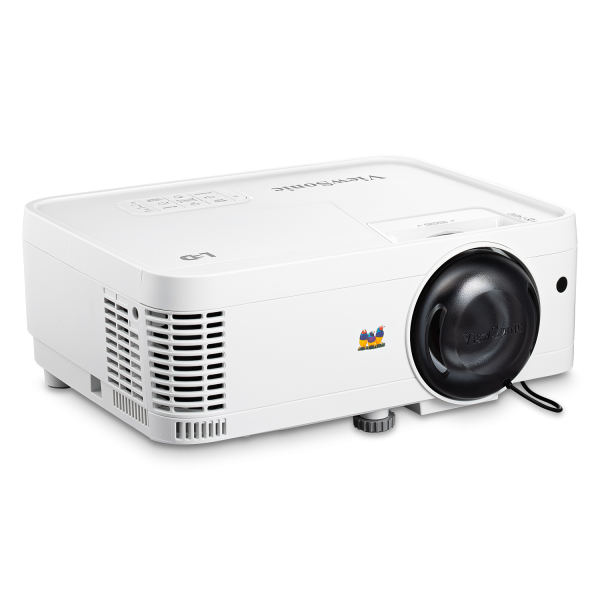

  • LS550WH Right LS550WH Right
  • LS550WH Right LS550WH Right
  • LS550WH Right LS550WH Right

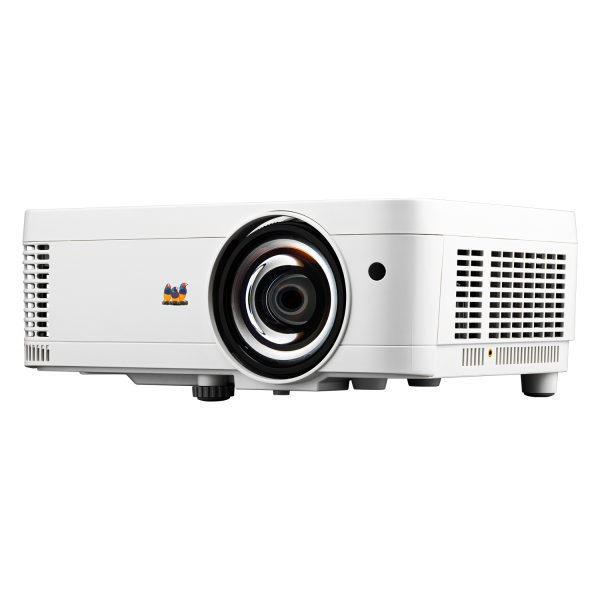

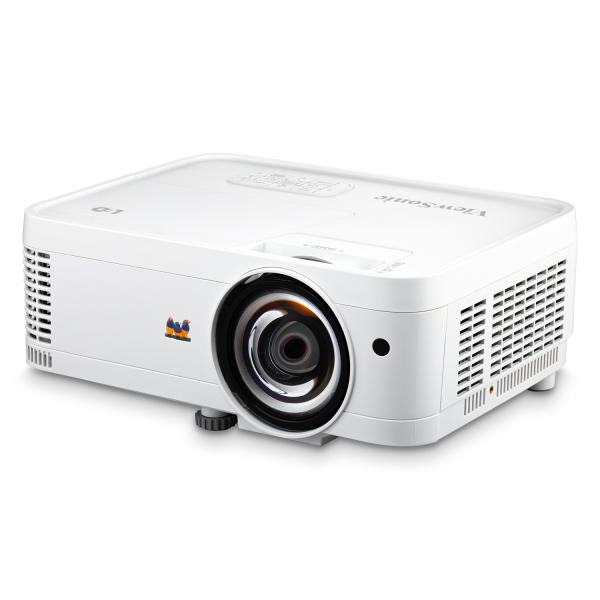

  • LS550WH Left LS550WH Left
  • LS550WH Left LS550WH Left
  • LS550WH Left LS550WH Left

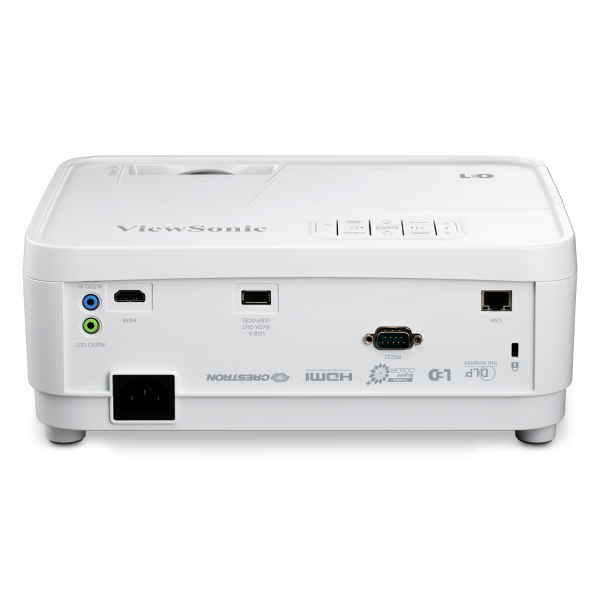

  • LS550WH Back LS550WH Back
  • LS550WH Back LS550WH Back
  • LS550WH Back Right LS550WH Back Right

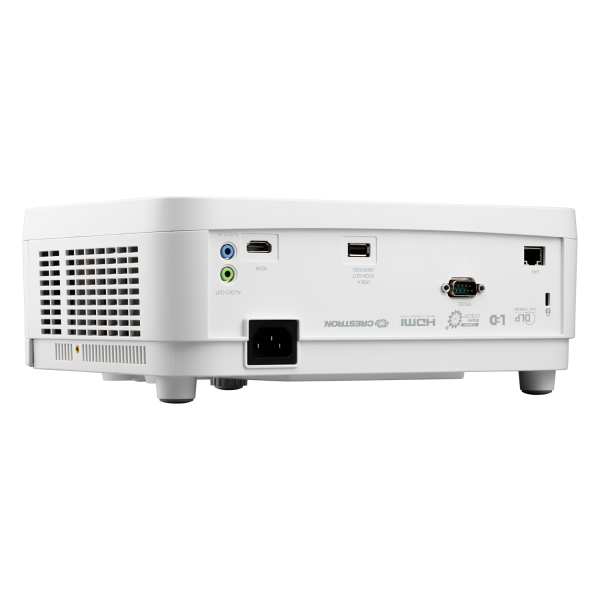

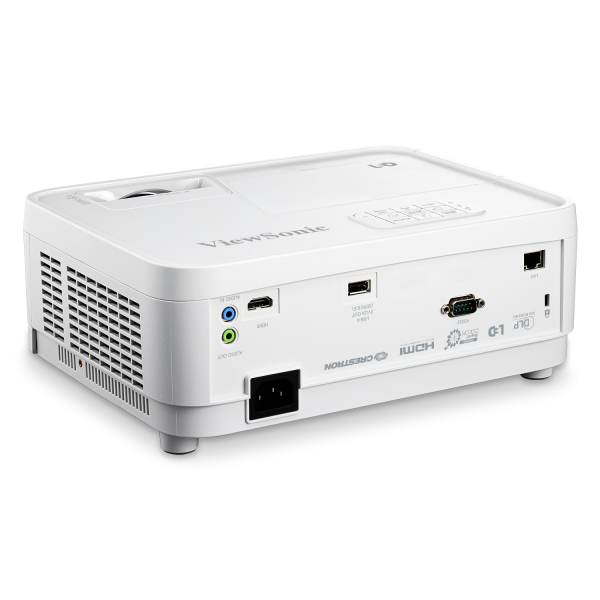

  • LS550WH Back Left LS550WH Back Left
  • LS550WH Back Right LS550WH Back Right
  • LS550WH Back Left LS550WH Back Left

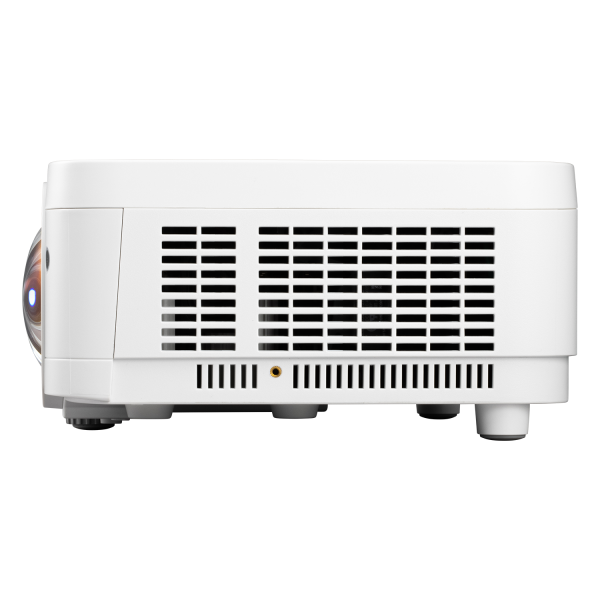

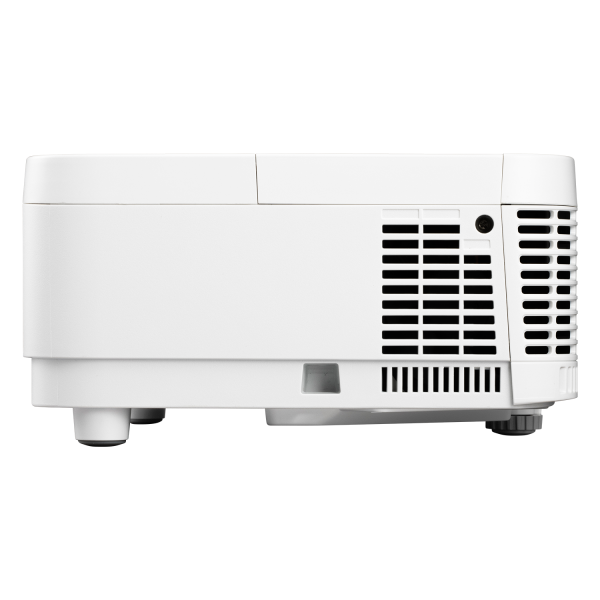

  • LS550WH Side LS550WH Side
  • LS550WH Side LS550WH Side

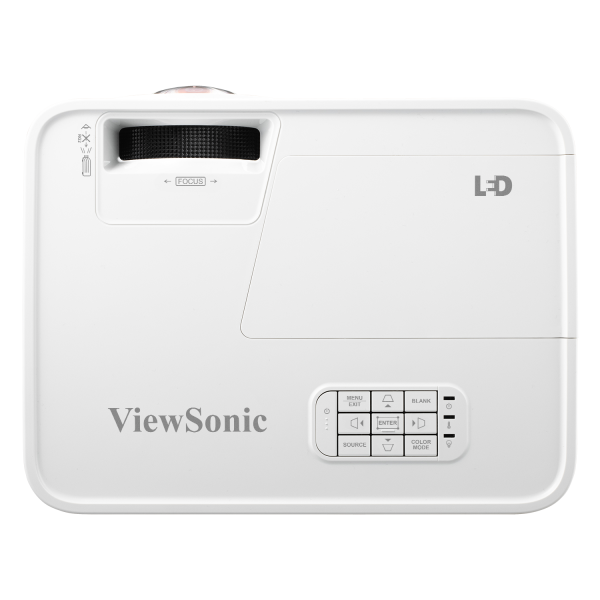

  • LS550WH Top LS550WH Top

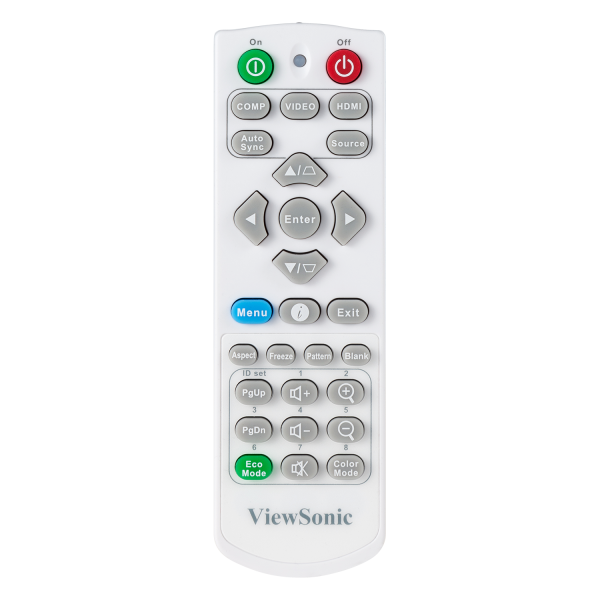

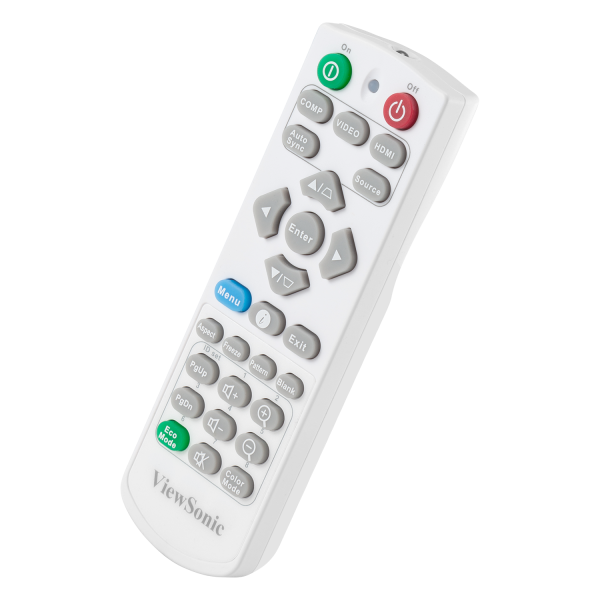

  • LS550WH Remote Control LS550WH Remote Control
  • LS550WH Remote Control LS550WH Remote Control

LS550WH - 3000 Lumens WXGA Short Throw LED Projector w/ 125% Rec. 709

Featuring 1280x800 WXGA resolution, 3,000 LED lumens of brightness and a short throw lens, the ViewSonic® LS550WH is a lamp-free LED projector ideal for business and education. Its 0.49 short throw lens provides a 100” screen from just a few feet away, delivering exceptional space efficiency and freeing presenters from blinding lights. No matter the environment, expect stunning images and vivid colors, as this projector boasts 125% Rec. 709 color accuracy. With 2nd generation LED technology, the LS550WH eliminates the need to continuously swap out bulbs and dispose of toxic chemicals. In addition, an IP5X sealed optical engine prevents dust and moisture from entering the projector, ensuring impeccable image quality and a long maintenance-free lifespan of up to 30,000 hours.* An automatic on/off feature delivers efficiency and power savings, while 360° tilt angle projection delivers flexible setup in small- to medium-sized meeting rooms and classrooms. Whether for business or education, the ViewSonic LS550WH LED projector provides a picture-perfect presentation every time.
*Lightsource lifespan may vary based on actual usage and other factors.

Find the right ViewSonic projector for your home theater, classroom, or enterprise solutions using our Projector Distance Calculator .

Availability: In stock

$748.99

Featuring 1280x800 WXGA resolution, 3,000 LED lumens of brightness and a short throw lens, the ViewSonic® LS550WH is a lamp-free LED projector ideal for business and education. Its 0.49 short throw lens provides a 100” screen from just a few feet away, delivering exceptional space efficiency and freeing presenters from blinding lights. No matter the environment, expect stunning images and vivid colors, as this projector boasts 125% Rec. 709 color accuracy. With 2nd generation LED technology, the LS550WH eliminates the need to continuously swap out bulbs and dispose of toxic chemicals. In addition, an IP5X sealed optical engine prevents dust and moisture from entering the projector, ensuring impeccable image quality and a long maintenance-free lifespan of up to 30,000 hours.* An automatic on/off feature delivers efficiency and power savings, while 360° tilt angle projection delivers flexible setup in small- to medium-sized meeting rooms and classrooms. Whether for business or education, the ViewSonic LS550WH LED projector provides a picture-perfect presentation every time. *Lightsource lifespan may vary based on actual usage and other factors.

Advanced LED Light Source

Advanced LED Light Source

This projector uses the latest solid-state LED technology that is both mercury-free and lamp-free, offering a greener, filter-free projector solution. The LED light source provides over 30,000 hours of usage* while consuming less than half the power of a typical LCD TV, thereby lowering your total cost of ownership.

*Lightsource lifespan may vary based on actual usage and other factors.

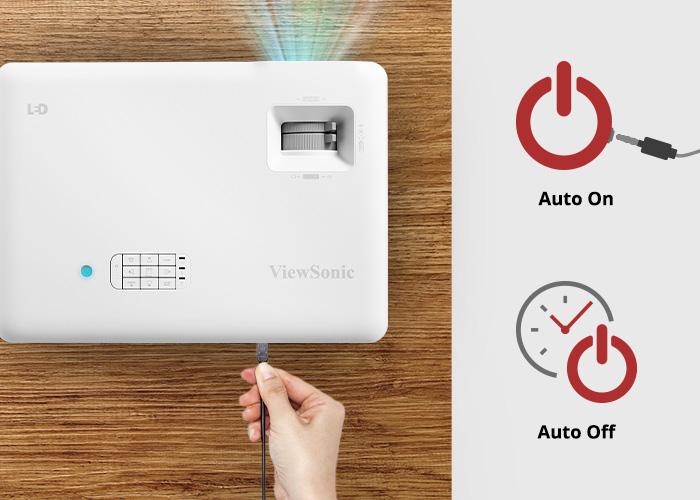

Convenient Auto Power On/Off

This projector can be configured to automatically turn on for quick and easy startup whenever an active video input is detected. Conversely, when no signal is present, the projector will automatically power off after a user-defined amount of time.

Bright Images in any Environment

Packed with 2,000 ANSI lumens/3,000 LED lumens and a high contrast ratio, this projector produces bright images in nearly any environment

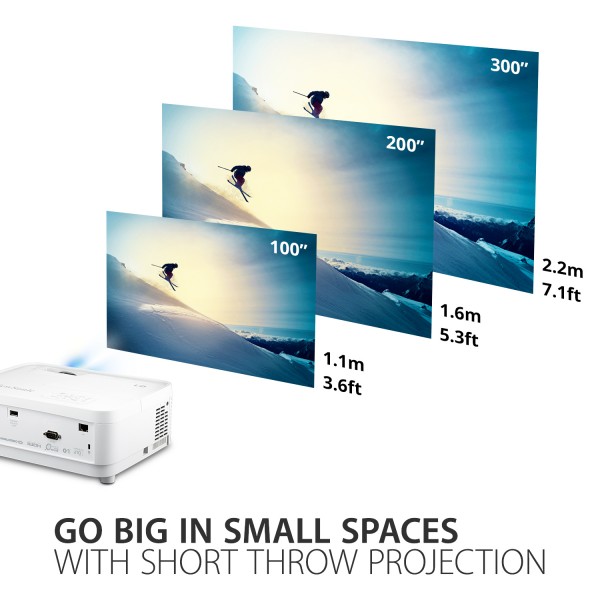

Short Throw/Ultra Short Throw

Large Images in Small Spaces

A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector’s light source is closer to the projection surface.

360-degree Orientation

A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.

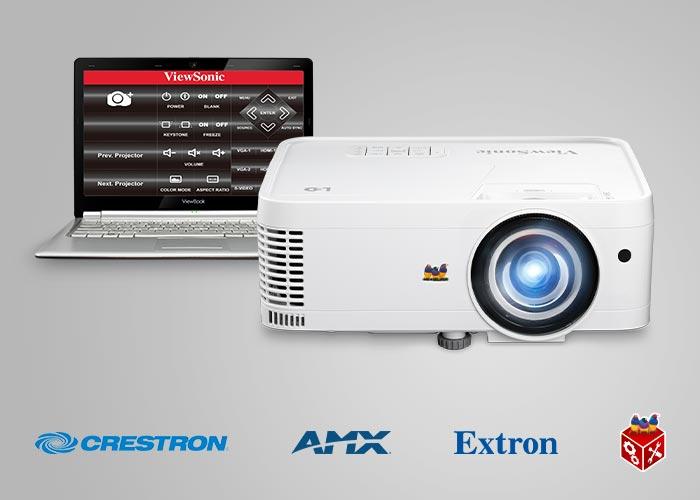

Comprehensive LAN Control

This projector comes equipped with Crestron, AMX, Extron and ViewSonic vController, which are all easy-to-use network management tools.

Resolution

1280 x 800

Throw Ratio

0.49

Throw Distance

0.92m-2.2m (100"@1.53m)

Brightness (Lumens)

3,000 LED (2,000 ANSI)

Display

Type

DLP LED

Resolution Type

WXGA (1280x800)

Resolution

1280 x 800

Brightness (Lumens)

3,000 LED (2,000 ANSI)

Display Size (in.)

30 - 300 in. / 0.76 - 7.62 m

Throw Distance

0.92m-2.2m (100"@1.53m)

Throw Ratio

0.49

Keystone

Vertical (+ 36º/- 40º) / Horizontal (+/- 40º)

Light Source (watt)

RGB LED

Light Source Life, Normal (hours)

30000

Color Depth

1.07 Billion Colors

Dynamic Contrast Ratio

3,000,000:1

Aspect Ratio

16:10

Video Signal

Frequency Horizontal

15K~102KHz

Frequency Vertical

23-120Hz

Compatibility

PC Resolution (max)

1920 x 1080

PC Resolution (min)

640 x 480

Mac® Resolution (max)

1920 x 1080

Mac® Resolution (min)

640 x 480

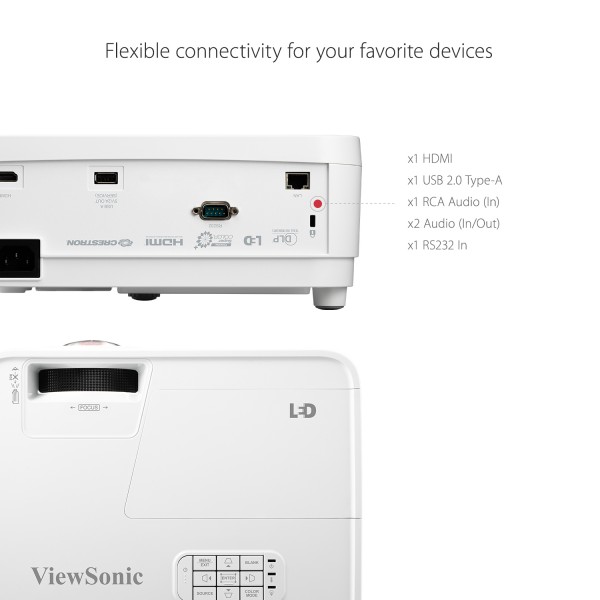

Connector

USB 2.0 Type A

1

3.5mm Audio Out

1

3.5mm Audio In

1

Control (RS232)

1

HDMI 1.4 (with HDCP 1.4)

1

RCA Audio In (L/R)

1

Audio

Internal Speakers

2W (x1)

Power

Voltage

100-240 VAC, 50-60Hz

Consumption (typical)

157W

Stand-by

<0.5W

Controls

Physical Controls

Keypad, Power key

On Screen Display

Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)

Operating Conditions

Temperature

32-104º F (0 - 40º C)

Additional Hardware

Kensington Lock Slot

1

Weight (imperial)

Net (lbs)

5.4

Gross (lbs)

7.8

Weight (metric)

Net (kg)

2.5

Gross (kg)

3.6

Dimensions (imperial) (wxhxd)

Packaging (in.)

14.4 x 11.8 x 7.4

Physical (in.)

11.5 x 8.7 x 4.5

Dimensions (metric) (wxhxd)

Packaging (mm)

365.0 x 300.0 x 188.0

Physical (mm)

293.0 x 221.0 x 115.0

General

AV Control

AMX Certified, Crestron Certified, Extron Certified

Regulations

cTUVus

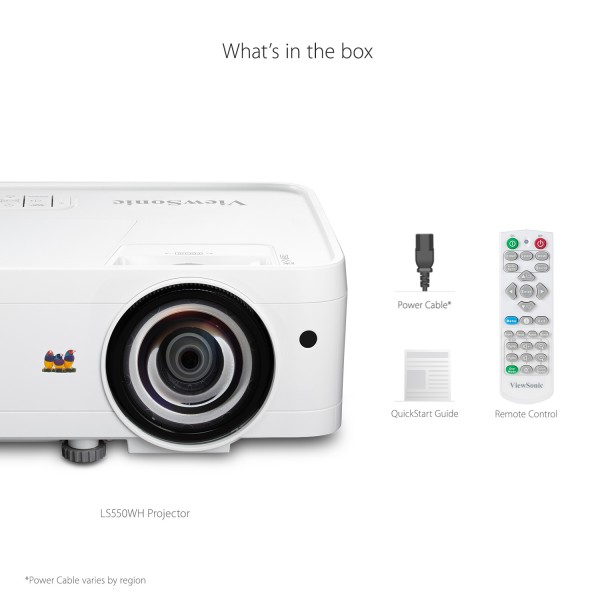

PACKAGE CONTENTS

LS550WH projector, power cable, remote control, Quick Start Guide

Warranty

Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange® service. (One year Express Exchange Service requires product registration).

Recycle/Disposal

Please dispose of in accordance with local, state or federal laws.

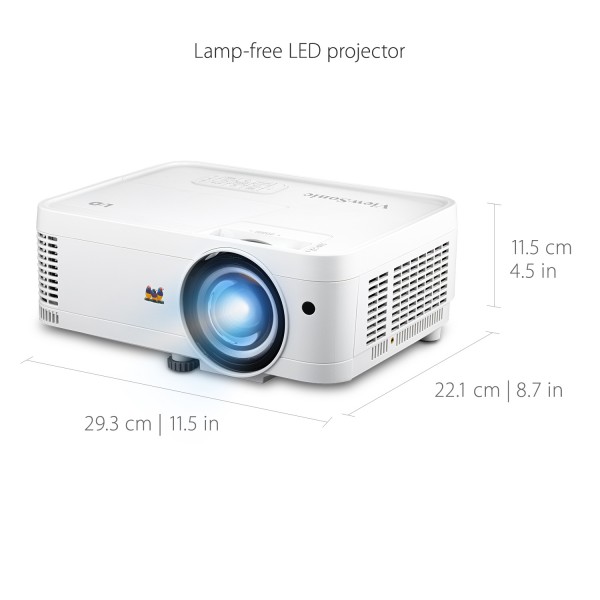

Dimensions

11.5 x 8.7 x 4.5 in / 293.0 x 221.0 x 115.0 mm

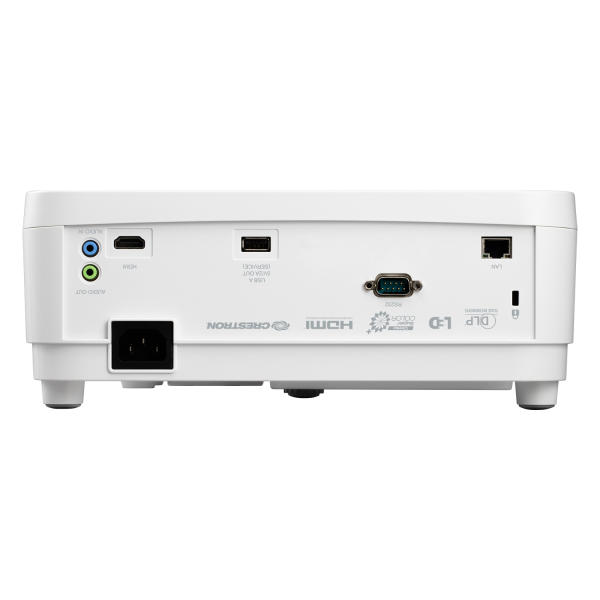

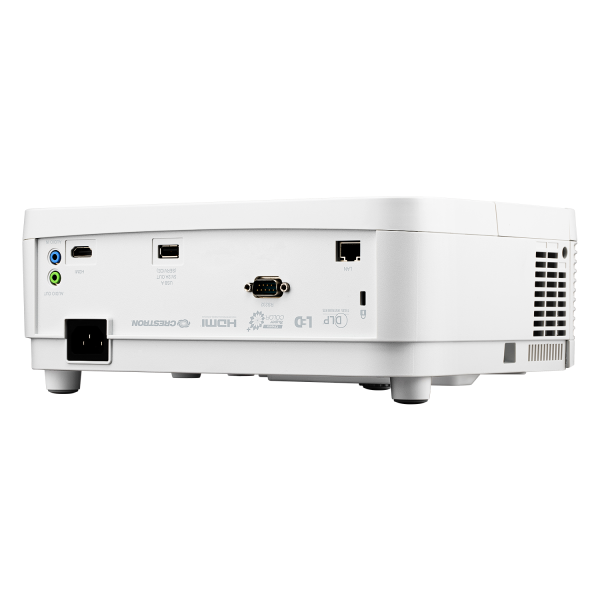

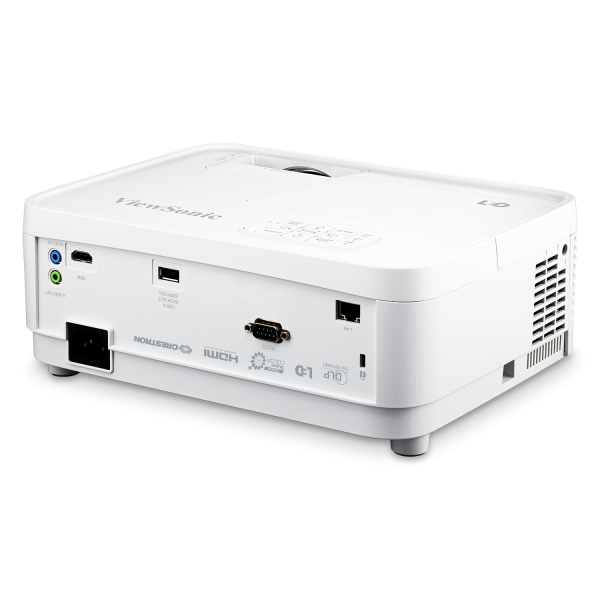

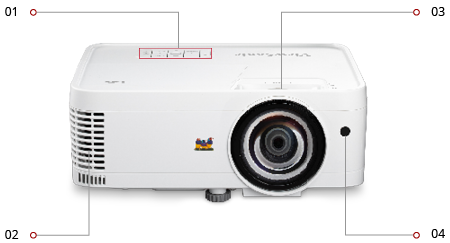

  1. Control Panel
  2. 2W Internal Speaker
  3. Zoom Ring
  4. IR Remote Sensor
  5. USB 2.0 Type-A
  6. HDMI 1.4/ HDCP 1.4
  7. 3.5mm Audio In/Out
  8. AC In
  9. LAN
  10. RS232 In
  11. Kensington® Lock Slot
